PAC 3500 E Local Air Conditioner + AirLock 1000 Door and Window Sealing
Availability: Currently not in stock
Cool down, ventilate and dehumidify with the air conditioner PAC 3500 E
The 3 in 1 air conditioner PAC 3500 E sets standards in design and performance diversity!
On hot summer days, it cannot happen fast enough when it comes to the cooling down of heated rooms. The mobile PAC 3500 E with its powerful compressor (3,5 kW) ensures pleasant climate in a very short time and cools down the rooms sized up to 45 m² noticeably fast.
And since a healthy feel good climate consist not only of the appropriate room temperature but also of an optimal air distribution inside the room, the PAC 3500 E has a three stage switchable ventilator with swing function. The ventilation speed and air flow direction can be easily adjusted by using the supplied remote control.
The comfortable timer function enables also time-controlled activation and deactivation of the device. As the energy costs are rising these days, it also helps to save money!
Air dehumidification with PAC 3500 E
If humidity is a problem, turn on the dehumidification mode.
At the push of a button, the air conditioner PAC 3500 E turns into a powerful air dehumidifier wit a maximum dehumidification capacity of 1,2 liters per hour. It is good to know that in the event of a problem you have by your side a professional to create a healthy indoor climate.

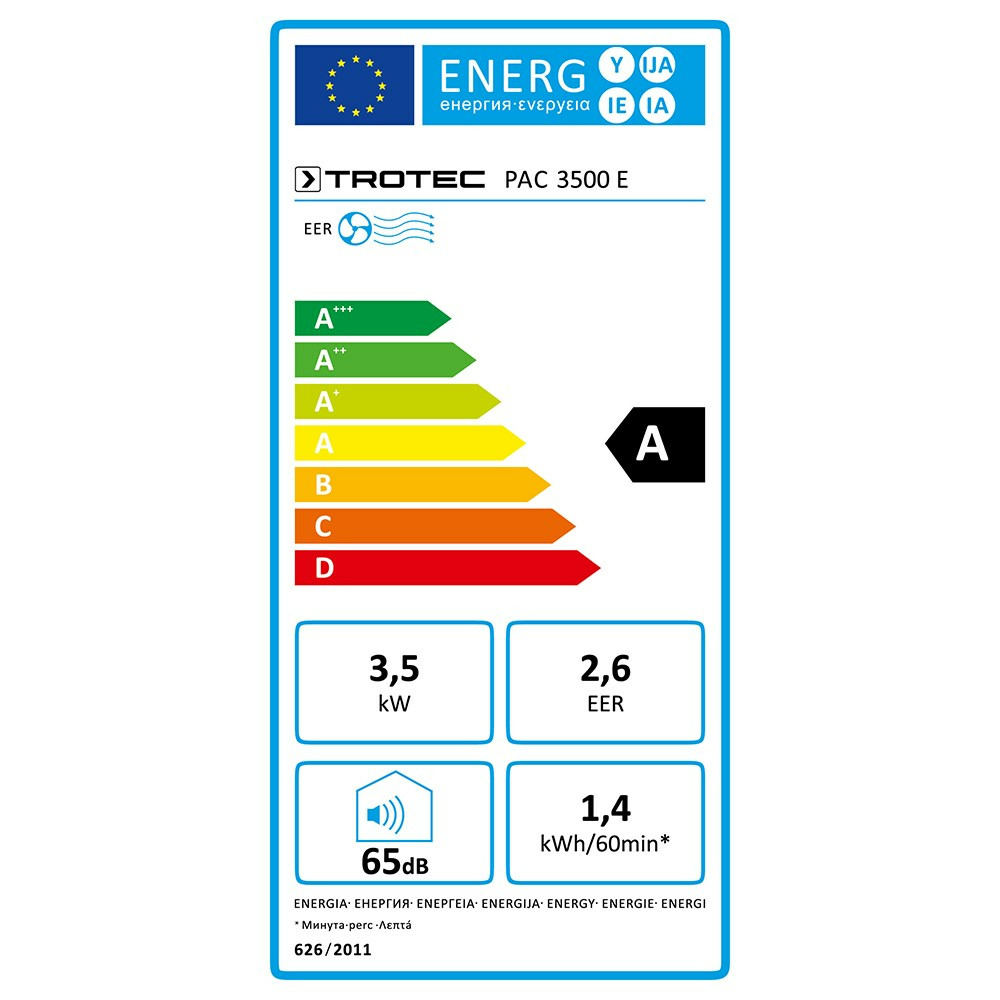

With all these powerful features the monoblock device consume surprisingly little energy and thus meets the current and cost saving energy efficiency class A. Another feature which is profitable for your budget.
Operation and installation of PAC 3500 E
The air conditioner can be comfortably operated with a remote control or with a control panel with backlit LCD display which is situated on the top of the device. The target temperature is adjustable from 16 to 30 degrees.
In cooling and dehumidification mode the indoor air is dehydrated. This condensate is collected in the built-it water tank with EVA water filter and kept germ-free until emptying. A warning LED signal that the water tank should be emptied.
Assembly tip: In order to install the discharge hose use the practical window seal AirLock 100. Once attached with a few hand movements, this window fastening prevents the backflow of hot air into the interior and allows the attachement of the hose to any type of window (casement window, bottom hung window, roof window).
Mobile and thought through to the smallest detail
The air conditioner PAC 3500 E can be moved quickly between different locations thanks to its compact design and the
handles recessed into the housing and the bottom rollers. For the safe storage of the device at the back of the product you can find the cable holder and place to hide the remote control.
Few practical benefits in overview:
- 3-in-1 air conditioner: cooling, ventilation, dehumidification
- Energy efficiency class A
- Suitable for rooms up to 45 m²
- Quick temperature control at minimum operational costs
- 3,5 kW cooling capacity/12.000 BTU
- 1,2 l/24 h dehumidification
- Programmable timer function
- Swing-Function for optimal air distribution
- IR-remote control
- Three fan stages
- Removable air filter
Here the technical details of PAC 3500 E in overview:
- Type: Local air conditioner - Monoblock device
- Energy efficiency class A
- Coolin capacity (kW/Btu): 3,5 / 12.000
- Max. dehumidification capacity: 1,2 l/h
- Suitable for rooms up to: 115 m³ / 45 m²
- Environmental conditions: 16 - 30 °C
- Air flow max.: 420 m³/h
- Fan stages: 3
- Supply voltage (V/Hz): 220-240/50
- Power consumption max.: 1,4 kW
- Rated current consumption: 6,1 A
- Refrigerant: R-290
- Amount of refrigerant: 290g
- Sound level, stage 1 (distance 1 m): 56 dB(A)
- Dimensions L x W x H: 430 x 360 x 730 mm
- Weight: 28 kg
- Discharge hose: 1,5 m / Ø 15 mm
Mobile Air Conditioners - Comfortable Chilling Machines
Note: No cooling without hose!
Do not let yourself be confused by pictures of the air-conditioners, which suggest a completely tubeless application - at least one hose is indispensable, even if you do not always see it!
Why?
Professional home air-conditioning systems world-wide are all compression refrigeration systems. And these generate as much cold as heat - unalterable physics. The generated cold is desired in the room, but the heat is not. That's why it has to go outside.
In the case of split devices, it is automatically outside, because here, the heat is dissipated directly in the external condenser. Nevertheless, these devices also require a connection line for the circulating refrigerant, which ensures the refrigeration transport.
With monoblock construction, the heat is central in the unit and must therefore be directed to the outside without mixing it again with the interior air.
For this purpose, at least one exhaust air hose is used, which is therefore a fixed delivery component of every monoblock air-conditioning unit available on the market, even if it is not directly apparent in every application illustration.
AirLock from Trotec is Europe's best-selling window seal for combined use with one- or two-hose air conditioning units. The AirLock 1000 window seal extends the application possibilities of this practical accessory-set as it can also be used on terrace and balcony doors, as well as windows at ground level.
With the AirLock 1000, you can finally profit from the advantages of an energy-saving window sealing even with doors or very large windows!
The AirLock 1000 is the only window seal on the market to measure 560 cm. This makes the AirLock 1000 the first choice for the sealing of balcony and terrace doors or windows at ground level with rotary locks/tilt locks.
The exhaust air window seal AirLock 1000 can be installed between door or window and frame with just a few steps and has two variably adjustable zipper openings into which an exhaust hose end piece can be clamped seamlessly and precisely. This prevents the backflow of warm outside air into the room, which not only reduces the power consumption of your air-conditioning unit, but also prevents insects from entering the room.
If only one opening is required, the second zip opening remains simply invisible and air-tight. When leaving the house, the doors or windows can be closed without having to dismount the AirLock beforehand.
Benefits in practice:
- Energy-saving door and window sealing
- Increases cooling performance, reduces energy consumption
- Ideal for terraces and balconies or windows at ground level
- Thanks to two zipper openings, it is suitable for air-conditioning units with single-hose and two-hose technology
- Variable to fit all hose diameters
- Water resistant and washable
- Prevents the penetration of warm air and insects
- The window can be closed despite window sealing
- Pay off in the shortest possible time
- Easy self-assembly
- Residue-free disassembly
| Technical data | ||
|---|---|---|
| General information | ||
| Article number | 1.210.002.103 | |
| Type | ||
| Monobloc | ||
| Split | ||
| Cooling capacity | ||
| Max. cooling capacity [kW] | 3.5 | |
| Max. cooling capacity [Btu/h] | 12,000 | |
| Recommended room size | ||
| m³ | 115 | |
| m² | 46 | |
| Air flow rate | ||
| Level Max. [m³/h] | 420 | |
| Fan | ||
| stages | 3 | |
| Radial | ||
| axial | ||
| Dehumidification performance | ||
| Max. dehumidification performance [l/h] | 1.2 | |
| Attainable room temperature | ||
| (min.) depending on operating conditions [°C] | 16 | |
| (max.) depending on operating conditions [°C] | 30 | |
| Cooling medium | ||
| Cooling medium | Air | |
| Ambient conditions | ||
| Min. temperature range [°C] | 7 | |
| Max. temperature range [°C] | 35 | |
| Electrical values | ||
| Mains connection | 220 - 240 V, 50 Hz | |
| Power input [kW] | 1.4 | |
| Nominal current consumption [A] | 6.1 | |
| Recommended fusing [A] | 10 | |
| Electric connection | ||
| Connection plug | CEE 7/7 | |
| Cable length [m] | 1.8 | |
| Compressor | ||
| Minimum room size [m²] | 13 | |
| refrigerant | R290 | |
| Amount of refrigerant [g] | 265 | |
| GWP factor | 3 | |
| CO2 equivalent | 0.0008 | |
| Pressure suction side [MPa] | 0.8 | |
| Pressure outlet side [MPa] | 2.8 | |
| Sound values | ||
| Noise emission [dB(A)] according to EN ISO 3745:2012 | 65 dB(A) | |
| Level 1 - Distance 1 m [dB(A)] | 52 | |
| Level 2 - Distance 1 m [dB(A)] | 54 | |
| Level 3 - Distance 1 m [dB(A)] | 56 | |
| Exhaust air | ||
| Total length [m] | 1.5 | |
| Diameter [mm] | 153 | |
| Dimensions | ||
| Length (packaging excluded) [mm] | 360 | |
| Width (packaging excluded) [mm] | 430 | |
| Height (packaging excluded) [mm] | 730 | |
| Weight | ||
| (packaging excluded) [kg] | 29.5 | |
| Equipment, features and functions | ||
|---|---|---|
| Condensate draining | ||
| Exhaust air | ||
| With condensation tray | ||
| With water tank | ||
| With condensate drain | ||
| Available | ||
| Timer function | ||
| Switch-off time can be preselected | ||
| Switch-on time preselectable | ||
| Room thermostat | ||
| Available | ||
| Room air filter | ||
| Readily accessible | ||
| Cleanable | ||
| Additional functions | ||
| Dehumidification function | ||
| Ventilation function | ||
| Automatic function | ||
| Swing function | ||
| Sleep mode | ||
| Automatic fault diagnosis | ||
| Indication of the current room temperature | ||
| Fan rundown function | ||
| Control panel | ||
| Mikroprozessorgesteuerter Betrieb | ||
| Infrarot-Fernbedienung | ||
| Elektronisches Bedientableau | ||
| Membrantasten | ||
| LCD-Bedienfeld | ||
| Mobility | ||
| Carry/transport handle(s) | ||
| Plastic wheels | ||
| Rubber-tyred metal wheels | ||
| Non-marking full-rubber wheels | ||
| Swivel casters with parking brakes | ||
| Adjustable bar handle | ||
| Crane | ||
| Forklift | ||
| Housing design | ||
| Plastics | ||
standard equipment
optionally available
not available
| Technical data | ||
|---|---|---|
| General information | ||
| Article number | 6.100.002.004 | |
standard equipment
optionally available
not available
